Japan in Northwest Thailand during World War II

N18°21
E99°25
Hang Chat Landing Ground
(Th: ห้างฉัตรท่าอากาศยาน / Jp: ハンチャツ滑走路)

Lampang Province
Page 3 of 3
near Hang Chat
RR Station on
Northern Route
Sta 654.85



Text Notes



Aftermath: the 1950s-1970s[13]

The airstrip at Hang Chat does not appear on flight maps following the war (US Army Corps of Engineer maps dated 1958, 1973; and TPC 1983).

Air America did not index Hang Chat in its Air Facilities brochure.[14]

In 1966, the US Coast Guard established a LORAN (Long Range Navigation) transmitter at N18°19.550 E99°22.815 (WGS84 datum), which was about 4.5 km southwest of the center of the Hang Chat runways to aid navigation of ships in support of the Vietnam War. The nearness of the old IJAAF airstrips appears to have been entirely coincidental. The property and buildings were returned to the Thai government at the end of the Vietnam War, ie, in 1975. The buildings now house a health center for Hilltribe members. At the southeast corner of the property is now located the Hang Chat (Community) Hospital. The following links were sources for the above information and contain considerable details about the LORAN facility:

LORAN Station Lampang
Thailand-Laos-Cambodia Brotherhood
Forum message by Snoking

The site of the WW2 Hang Chat airstrip today

Today there appears to be almost no evidence of the air facility on the ground at the locations as determined by the Allied intel sketch. Here are two current photos of the site of the westerly runway.

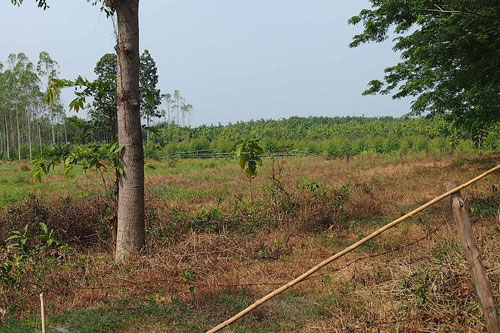

This photo looks north from the south end of the westerly airstrip. There does not appear to be even a subtle change in elevation in the open field:[15]

End of Hang Chat runway

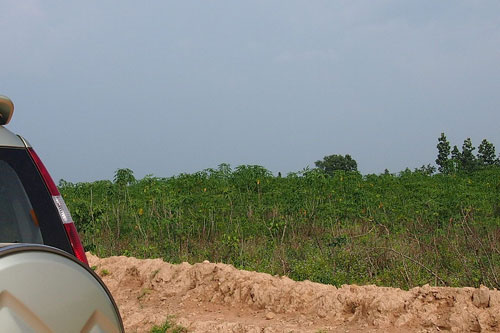

Farther north, near where an existing road intersects the westerly airstrip, there had been huts / hutments in the picture area; but if there had been anything there, it was long ago dispatched by a farmer's plow:[16]

Hutment location at Hang Chat

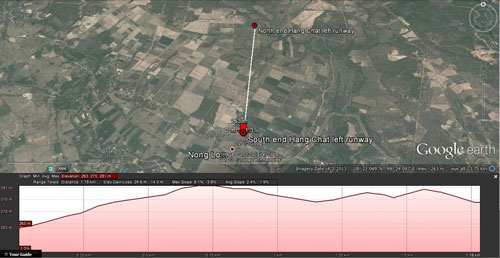

A profile of the length of the westerly runway as located per the Allied sketch shows a quite rough traverse:[17]

Profile Hang Chat left runway

A larger image of the profile above is available here.

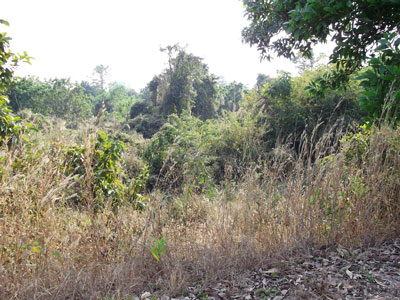

The easterly runway is obscured by the subsequent addition of a major irrigation canal (khlong). Looking south from the elevated road adjacent to the khlong, along what is believed to have been the line of the runway:[17a1]

Hang Chat east runway looking south

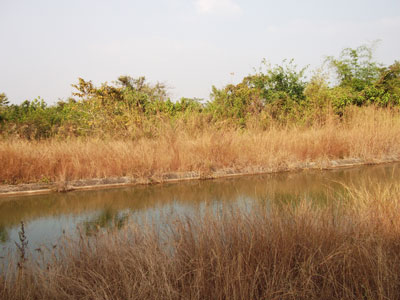

And looking to the north across the khlong:[17a2]

Hang Chat east runway looking north

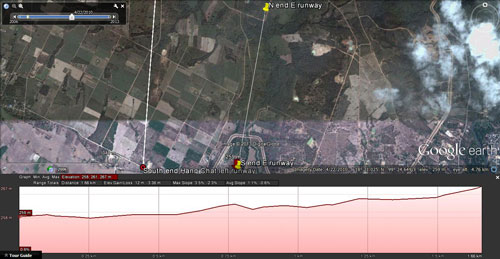

The profile for the easterly runway is pretty bumpy (but note that the khlong does not appear in the profile; if present it would show as a minor rise about 259 m north of the south end, which it does not):[17a3]

Hang Chat E runway

A larger image of the profile above is available here.

The easterly runway seems peculiar in that while it was reported as completed first, its full length had not been sketched in.

The roughness of the profiles is unusual --- if runways had ever been at those locations. Statistics of those profiles include:

Item West airstrip East airstrip
Elevation: min/ave/max 263 / 275 / 281 m 258 / 261 / 267 m
Elevation gain/loss 24.6 m / -14.3 m 12 m / -3.36 m
Maximum slope 8.1% / -3.6% 3.5% / -2.3%
Average slope 2.4% / -1.0% 1.1% / -0.6%



In fact, the data is perplexing. Two possible solutions come to mind and each is only tentative:

1. Location of the runway was not plotted correctly.

• Allied intel erred in preparing the map sketch; that would
   be most easily tested by viewing the aerials used to
   prepare the sketch; but none have been released.
• The map sketch is not correctly oriented to the Google Earth
   view. Two prominent points were used to align the sketch
   and appear to check out:
     • The bridge at Ban Saliam (N18°21.09 E99°23.19)
     • Confluence of two watercourses (N18°20.18 E99°26.14)

2. The Japanese intentionally prepared a "dummy" airfield in an
    attempt to deceive the Allies regarding their potential military
    strength. The map sketch noted "Trees & Scrub" surrounding
    the fields, with paddy to the south. Cutting a new airstrip
    in such an area would make it most obvious to Allied aerial
    photo intel. It would have seemed more logical to have built
    runways in existing paddy fields which were already cleared
    and flat such as was done at San Kamphaeng near Chiang Mai.

    Conversely, another airfield was actually set up concurrently
    at Mae Mo in "Dense Forest"; and evidence of it remains today
    in ground contour. Further, it attracted at least three bombs
    (two bomb craters are still visible and local oral history records
    one unexploded bomb which was later retrieved by the Thai
    government) --- while the Hang Chat site exhibits nothing.
    Perhaps "Dense Forest" provided more of a contrast for Allied
    pilots, which provided better visibility for the Mae Mo airstrip.

    Further, no aircraft were ever reported on either Hang Chat runway.

At this time, which explanation, if either, might be correct is unclear; and another alternative, not coincident with the Allied intel locations --- that of the eye witness on the ground, Maeson Wongtom --- should be considered.


A view from the ground, revisited

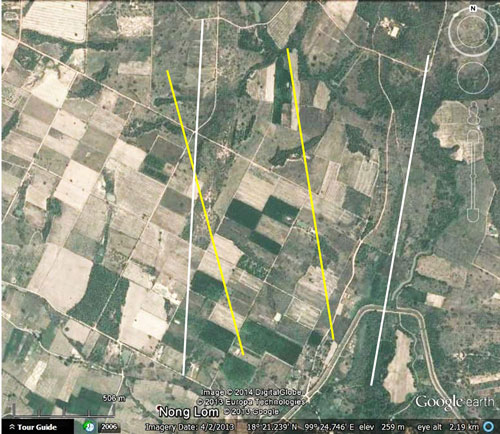

Maeson Wongmot's information must be considered largely fragmentary; however, extrapolating from what she provided, the possible tracks of the runways (the two yellow lines in the markup below) are possible, but not probable, when compared with those based on Allied intel reports (the two white lines). Of particular significance is Allied intel's text consistently describing the runways as having been separated by 500 yards (457 m). While the yellow lines conform to that criterion, the white lines, based on an Allied intel sketch, are separated by more than twice that distance on average, ie, 950 to 1150 m:[17b]

Comparison of Wongtom & Allied runways



Name confusion --- the highway strip at Hang Chat:

A Hang Chat Highway Strip[18] was established probably in the 1970s --- at least on paper. Its separate existence was unrelated to the Japanese Hang Chat airstrips. The Japanese airstrips never appeared in postwar flight maps. The highway strip first appeared in a 1973 flight map, as shown in the sequence below:

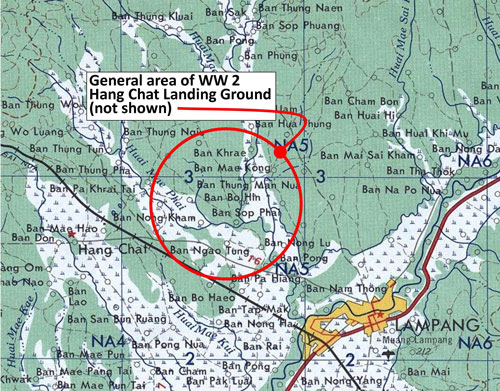

1958: the current right-of-way for Thai Route 11 roadway on which the highway strip is shown on later maps (and the roadway exists today), did not yet exist. It would have appeared south of and parallel to the railroad track coming out of Lampang:[19]

1955 TPC Hang Chat area

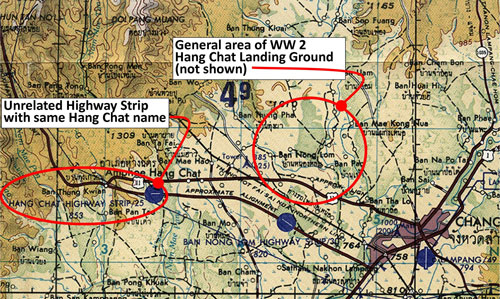

1973: the highway strip name first appeared on a highway statused as "approximate alignment", which would suggest that the roadway was in a design / construction stage at the time that the map was finalized.. Its location indicates that it would be the future Thai Route 11, which would replace a right-of-way then in use as "Route 11", but now designated Thai Route 1035:[20]

1973 TPC Hang Chat area

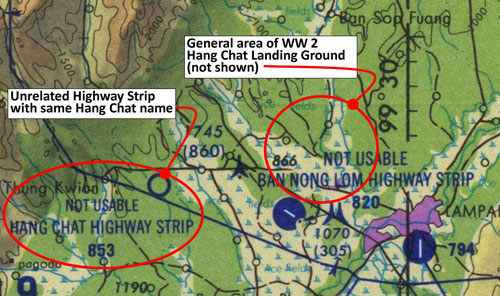

1983: the highway strip was statused "not usable". That was basically because the highway had not been built, for it was not shown (the solid line to the south of the two was a power line). The status of the continuation of the older road to the northwest paralleling the power line is a dashed line which is not shown in the map legend: it would imply a road lower in quality than a "secondary road" which would be the solid line equivalent.[21]

1983 TPC of Hang Chat area


It is assumed that the highway strip was a design provision included in the rerouting / improvement project for Thai Route 11, but that it was never actually implemented. The highway strips were possibly a function of the US Vietnam War, in which Thailand served a number of functions. If the highway had not been built by 1983 as is indicated by this map, then the Vietnam War would no longer have been justification for the highway strips' existence; hence the trees that line the road today.

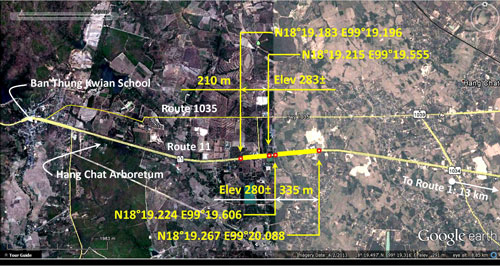

A current, Google Earth view of the immediate area suggests one of two possible locations which might have been planned for the highway strip. To the west of these locations, the highway grades are too steep to comfortably accommodate aircraft; to the east, a horizontal curve acts as a boundary for aircraft takeoffs and landings. The length of highway within those bounds include two sections of fairly level roadway, one at elevation 280±, the other at 283±:[22]

Markup for Hang Chat hiway strip

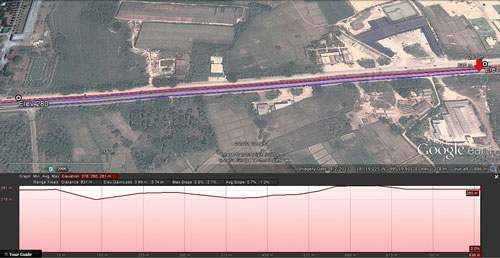

The profile of the highway in that length looks like this:[23]

Profile of hiway strip

The easterly section (at elev 280) would have been just about long enough at 335 meters to have accommodated a de Havilland DHC-4 (US Army early designation YAC-1) which was popular amongst military forces during that period.[24] Were the two sections joined, a partially loaded C-130 could have used the resulting 550 meter stretch.[25]




To Do List

p Item
1 Get verificatn fm Dr Sak on Hang Chat a/f locatn (approx locatn of site was verified by govt workr at Amphoe Hang Chat (07 Oct 2013))
2 16Mar45 map sketch of a/f, overlaid on GE map w north arrow directn fixed; take photos at points, esp E r/w. Done.
3 Get sta info to locate on gnd. Check soi names. Done.
4 Talk w neighbors at bridge to W of site











13.^ This section added 29 May 2014. Steve Druzak's recollections (various emails starting 1711 14 May 2014) stirred me into looking at the USCG presence in Lampang.

I had visited unknowingly the former LORAN site in Oct 2013 while looking for old government employees who might recall the IJAAF site. The visit was fruitless, but the comment had been made, perplexing at the time, that the buildings had once been occupied by US military personnel.

14.^ Air Facilities Data Thailand 432, (?: Air America, 01 Feb 1971), p 74.











15.^ PA070876.jpg
     07 Oct 2013
     by Jiraporn Jacqmin.



























16.^ PA070886.jpg
     07 Oct 2013
     by Jiraporn Jacqmin.



























17.^ Google Earth view of probable location of westerly Japanese Hang Chat airstrip, with a Google Earth "path" drawn on applicable section with option "show elevation profile" activated.



















17a1.^ DSCF1647.jpg of 29 Jan 2014.























17a2.^ DSCF1648.jpg of 29 Jan 2014.



























17a3.^ Google Earth view of probable location of easterly Japanese Hang Chat airstrip, with a Google Earth "path" drawn on applicable section with option "show elevation profile" activated.



























































































17b.^ Google Earth view of Hang Chat area with possible runway locations indicated by superimposed lines. Annotation by author using Microsoft Publisher.





























18.^ Wikipedia: A highway strip or road runway is a section of a highway or motorway that is specially built to allow landing of (mostly) military aircraft and to serve as a military airbase. These were built to allow military aircraft to operate even if their air bases, the most vulnerable targets in any war, are destroyed. In the Cold War highway strips were systematically built . . . .

19.^ Extract from map: "Indochina and Thailand 1:250,000", L509, Edition 1‑AMS (Washington: US Army Map Service, "First Printing, 5‑[19]58").

Annotations by author using Microsoft Publisher.

























20.^ Extract from map:
Joint Operations Graphic (Air): Changwat Lampang, Thailand Scale 1:250,000, Series 1401, Air Sheet NE 47-7, Edition 2 (Washington: Defense Mapping Agency Topographic Center, 1973)

For record purposes, Ban Nong Lom Highway Strip would likely have been between about N18°18.960 E99°24.575 and N18°18.960 E99°24.575. While not flat, the gradient is absolute smooth per Google Earth "Show Elevation Profile" option.

Annotations by author using Microsoft Publisher.







21.^ Extract from map:
Tactical Pilot Chart (TPC) J‑10C Burma, Laos, Thailand (St Louis: Defense Mapping Agency Aerospace Center, August 1969 (revised July 1983).

Annotations by author using Microsoft Publisher.































22.^ Extract from Google Earth showing possible Hang Chat highway strip sites.
Annotations by author using Microsoft Publisher.

















23.^ Google Earth view of possible location of Hang Chat Highway Strip, with path drawn on applicable section and "show elevation profile" activated.













24.^  Wikipedia:
de Havilland Canada DHC-4 Caribou.

25.^Wikipedia:
Lockheed C-130 Hercules.
